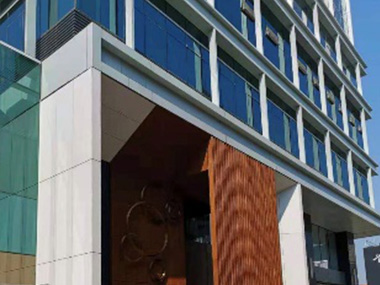

This anchor is suitable for anchoring a variety of ultra-thin and ultralight panels. Especially the artificial GRC board, Qiansi board, calcium silicate board, ceramic chips, glass ceramics and so on.
|
TOPIN UNDERCUT ANCHOR T-PUT/A4(Professional type) Stainless steel A4(1.4401,1.4404,1.4571) Anchor Size (mm) |
|||||
| Model | Panel thickness T(mm) | Implantation depth Hs(mm) | Borehole size (mm) | Item No. | Package quantity |
| T-PUT/A4 M5*6 | 8 | 5 | 7/9 | 212 211 305 | 800 |
| T-PUT/A4 M5*8 | 10 | 6 | 7/9 | 212 211 310 | 800 |
| T-PUT/A4 M6*8 | 13 | 8 | 9/11 | 212 211 320 | 600 |
| T-PUT/A4 M6*10 | 16 | 12 | 9/11 | 212 211 325 | 600 |
| T-PUT/A4 M6*14 | 18 | 14 | 9/11 | 212 211 330 | 500 |
|
Fixed spanner:
 |
|||||
 |
|||||
